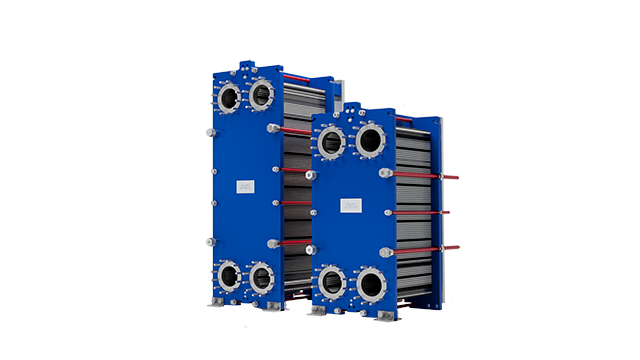

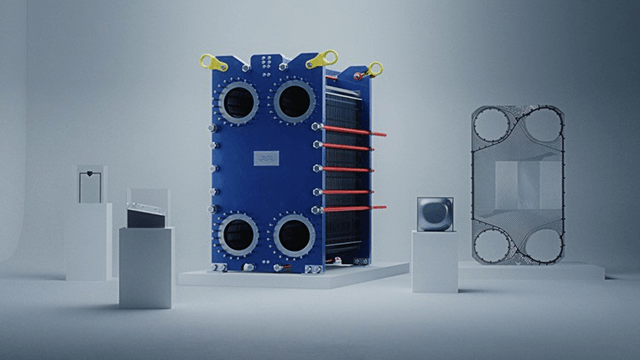

Kasetowe płytowe wymienniki ciepła
Częściowo spawane kasetowe płytowe wymienniki ciepła są odpowiednie do chłodnictwa, procesów chemicznych i różnego rodzaju zastosowań przemysłowych. Unikalny system uszczelnienia Alfa Laval RefTight ™ gwarantuje długotrwałe uszczelnienie pomiędzy zgrzewanymi kanałami, ponieważ spoina laserowa znajduje się po zewnętrznej stronie rowka uszczelki pierścieniowej. Gładka powierzchnia zapewnia szczelne i jednolite uszczelnienie na całym pierścieniu uszczelniającym.
Kasetowe płytowe wymienniki ciepła, parametry techniczne:
- Zakres temperatur: -45÷120 °C
- Ciśnienie pracy: do 63 bar
- Wydatek objętościowy: do 1 000 (m³/h)
- Maksymalna powierzchnia wymiany ciepła: 50÷9 000* (m²)
Korzyści :
- wiele dostępnych modeli
- elastyczna konstrukcja ułatwiająca mycie, serwisowanie i rozbudowę
- specjalna wersja na wysokie ciśnienia dla układów kaskadowych z CO2
- dostosowany do współpracy z separatorem Alfa Laval U-turn (NH3)
Zastosowanie:
| parowniki zalane, parowniki DX (z dystrybutorem), skraplacze, chłodnice oleju, desuperheatery, systemy kaskadowe (CO2/NH 3) |
Unique sealing system

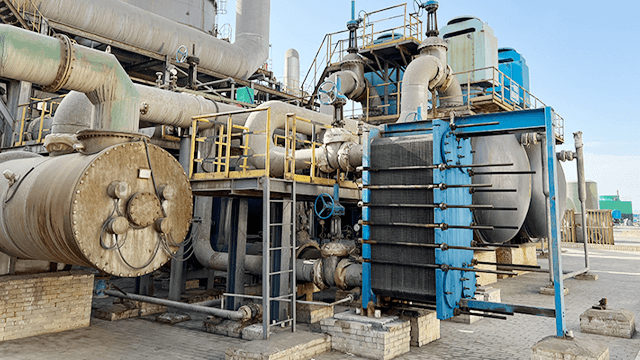

Alfa Laval Industrial semi-welded line handles most refrigerants and is particularly suitable for applications involving ammonia. Semi-welded heat exchangers are used in both organic and inorganic chemical processing when the chemicals involved limit the selection of gaskets that can be used or when the required design pressure makes fully gasketed plate-and-frame heat exchangers insufficient.
The media passes through the welded channel facing the ring gasket sealing between the laser welded cassettes. Alfa Laval semi-welded heat exchangers employ the Alfa Laval RefTight™, a unique sealing system which guarantees high performance by positioning the laser weld on the outside of the ring gasket groove. The smooth ring gasket grove ensures equal sealing force over the entire porthole gasket.
Equipped with well-designed features, Alfa Laval Industrial semi-welded line of heat exchangers are easy to maintain and have a long service life. Some of the features available include:
- ClipGrip™ gasket – a glue free gasket with superior alignment that ensures a perfect seal and trouble-free maintenance.
- Alfa Laval RefTight™ – a unique gasket groove design with maximum gasket support and minimum gasket contact.
- CurveFlow™ distribution area – ensures full use of the heat transfer area and minimizes fouling.
Peace of mind
Alfa Laval global service network is never far away.
Korzyści
- Wysoka sprawność energetyczna
- Elastyczna konfiguracja
- Łatwa instalacja
- Dostosowane do wykonywania prac serwisowych
- Dostęp do światowej sieci serwisowej Alfa Laval
Zasada działania
The heat transfer area of a gasketed plate-and-frame heat exchanger consists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. For the highest thermal performance and to enable a very close temperature approach, fluids normally run counter-currently through the heat exchanger.
The sealing between the plates on the Industrial semi-welded line alternates between laser welds and gaskets. The laser welded channel allows use of fluids that are not compatible with normal gaskets and also allows for higher design pressure than fully gasketed plate-and-frame heat exchangers. Additionally, the Alfa Laval RefTight™ sealing system guarantees equal sealing force over the entire porthole gasket.
Industrial semi-welded line is available with various pressing depths and angles of the chevron pattern and various shapes of the corrugation which are carefully designed and selected to achieve optimal performance. The CurveFlow™ and the chocolate pattern distribution area are two design features available that ensure fluids are evenly distributed across the entire plate. The result is that the entire heat transfer surface is fully utilized and stagnant zones that can result in fouling are avoided.
High flow turbulence between plates results in higher heat transfer; however, the consequence is pressure drop. Our thermal design engineers will help you design and select the model and configuration that is suitable for your application needs while delivering maximum thermal performance and minimizing pressure drop.
